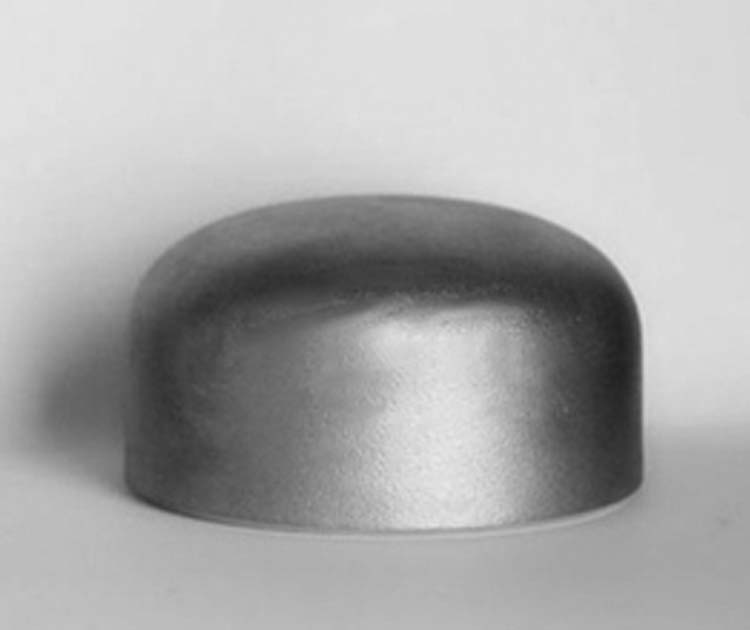

Pipe End Caps

Hi-Tech Stainless World manufacturers a large range of Stainless Steel Buttweld fittings in 45º and 90º Elbows, Concentric and Eccentric Reducers, End caps, Stainless Steel Equal and Reducing Tees, Stub Ends and Pipe End Caps.

Our Buttweld fittings are available in both grades: 304L and 316L schedule 10s, 40s and 80s. Buttweld fittings are stocked in accordance to WP–S (Seamless). All material are marked in accordance with the applicable standards and fully traceable to EN 10204 3.1 material certificates.

Description

Stainless Steel Pipe End Caps Stocklist

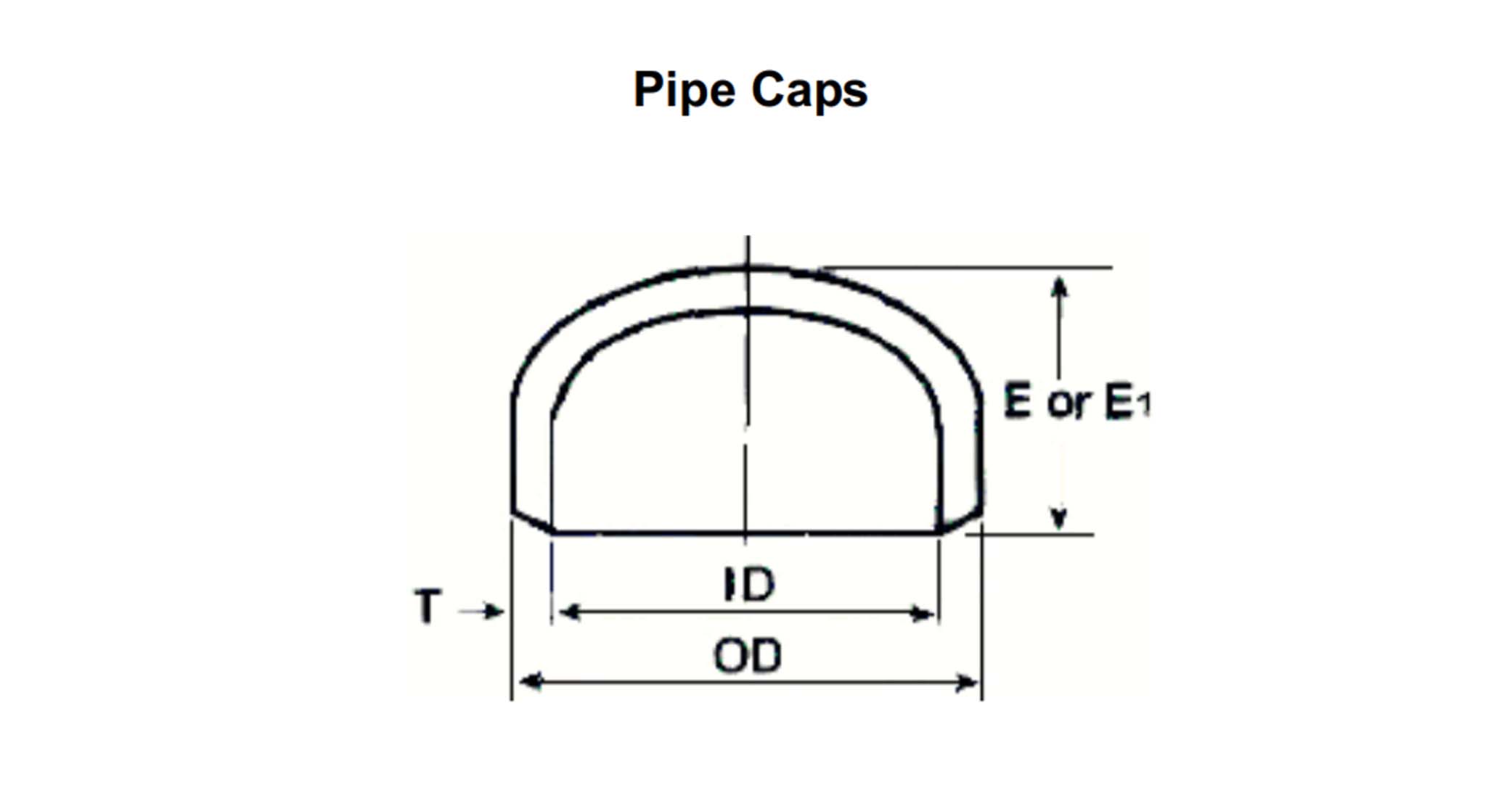

MSS SP-75 ANSI B16.9 (in mm). *Hi-Tech's Standard

Nominal Pipe Size	Outside Diameter at Bevel D	Length (2) E	Limiting Wall Thickness for Length E	Length (3)- E1	Available Stock	Price Per Piece
1//2	21.3	25.4	4.6	25.4		200.000
3//4	26.7	25.4	3.8	25.4		200.000
1	33.4	38.1	4.6	38.1		200.000
1-1//4	42.2	38.1	4.8	38.1		200.000
1-1//2	48.3	38.1	5.1	38.1		200.000
2	60.3	38.1	5.6	44.4		200.000
2-1//2	73	38.1	7.1	50.8		200.000
3	88.9	50.8	7.6	63.5		200.000
3-1//2	101.6	63.5	8.1	76.2		200.000
4	114.3	63.5	8.6	76.2		200.000
12	12	12	12	12	12	12.000
